Steerable-Removable Headlight

Description

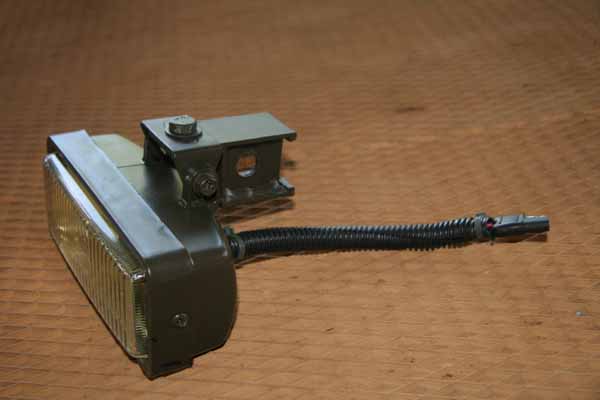

This is a simple bracket that slides on the tow bar bracket from the side and is held on by the tow bar pin. The light turns with the Mule and provides more directional light than a fixed light.

It is easy to remove the tow bar pin, slip the light off and hook up the tow bar when needed.

Materials

• 1/8" x 1 1/4" Steel flat stock

Tools

• Band Saw or Hacksaw
• Drill
• 3/8" Drill Bit
• 1/2" Drill Bit
• Welder

Steps

1. All the steps are in Figure A below. This is an old format and has not been converted yet.

Figures

Figure A: Design and Build Instructions. ( Click on image to enlarge. )

Application

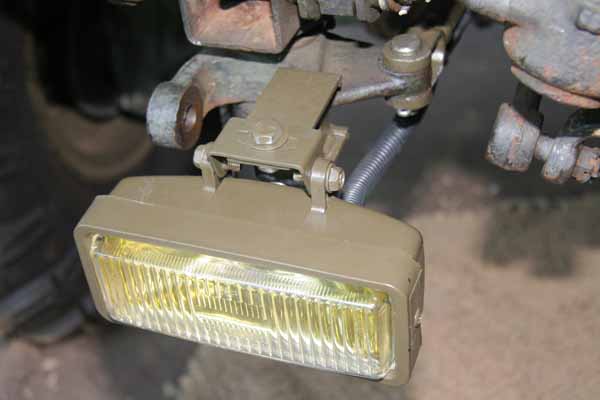

Steerable Headlight in place. ( Click on image to enlarge. )

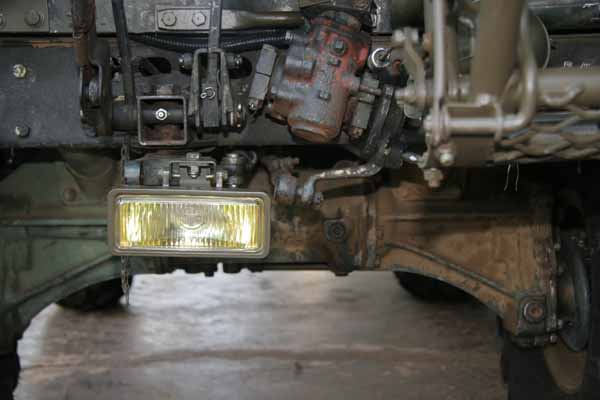

Viewed from front. ( Click on image to enlarge. )

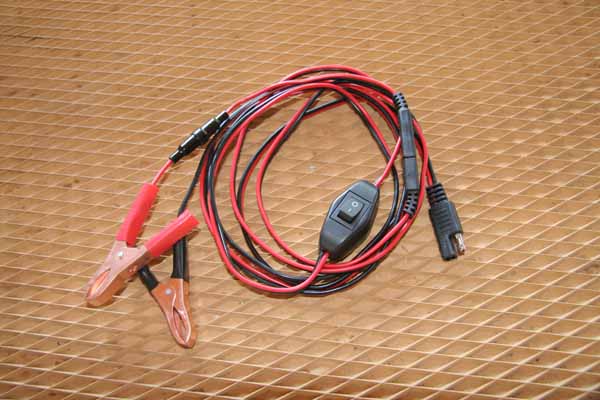

Removable Power Cord. ( Click on image to enlarge. )
